Actual jobs, not stock photos

Long runs, and the yard put back

Long water and drain runs across a property. A narrow trench does less damage than a wide one, and the yard is the part the homeowner keeps looking at after we leave.

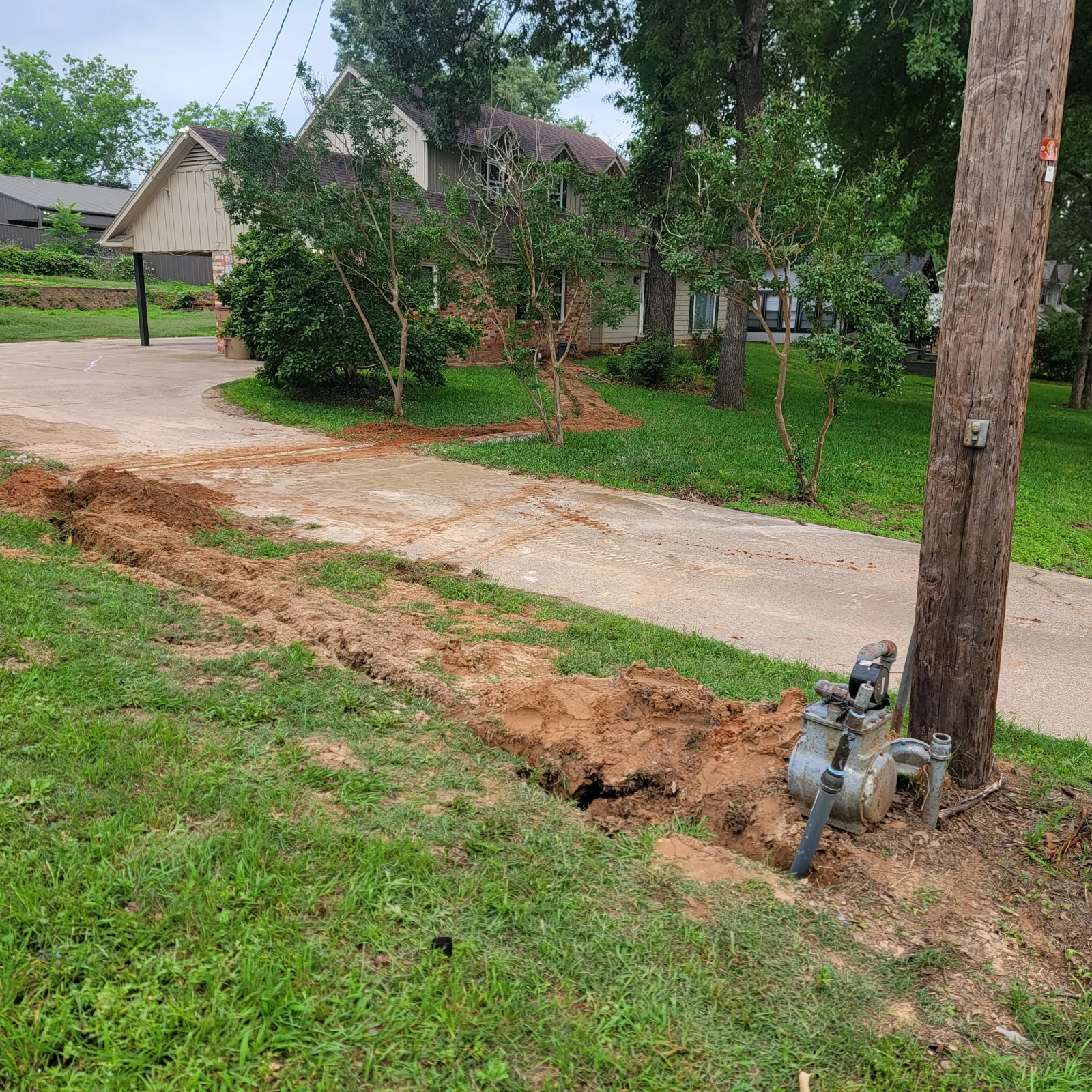

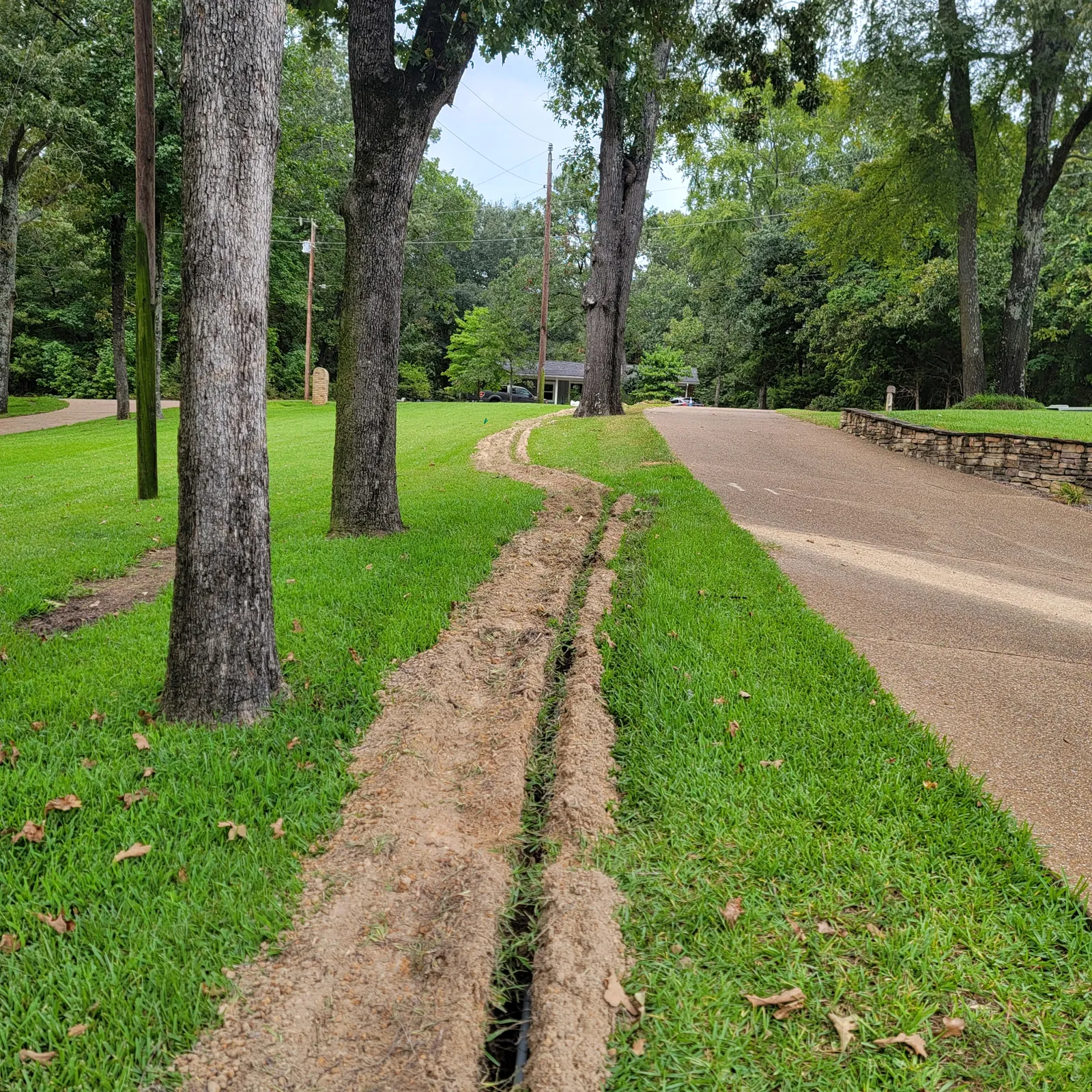

Along the Drive

Kept tight to the pavement edge so the lawn takes the smallest hit.

Fence Line Run

Run along the fence, where nobody is going to dig a garden bed later. Tracer wire goes in with the pipe so the next person can find it.

The Whole Length

That same fence line run from the other end, before backfill.

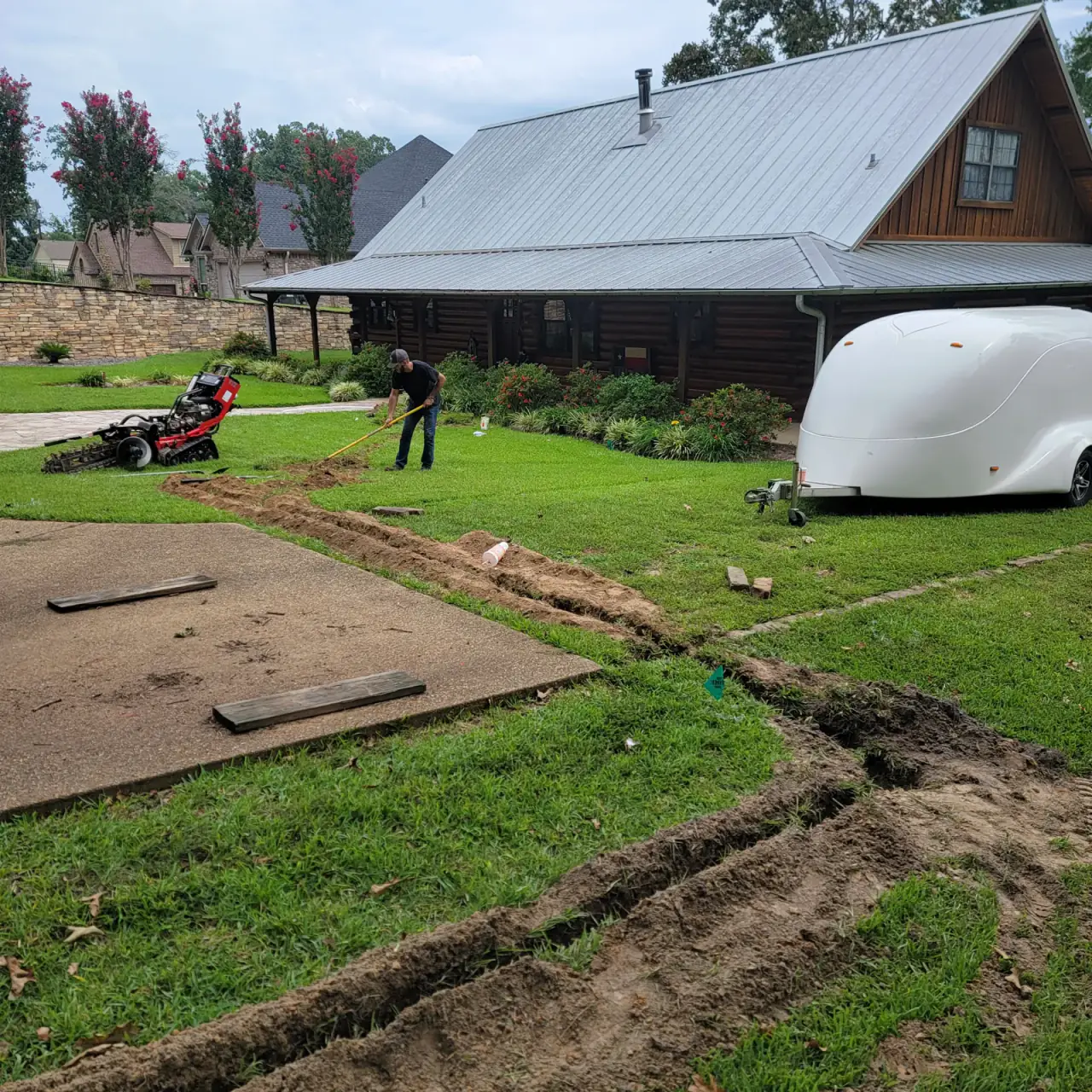

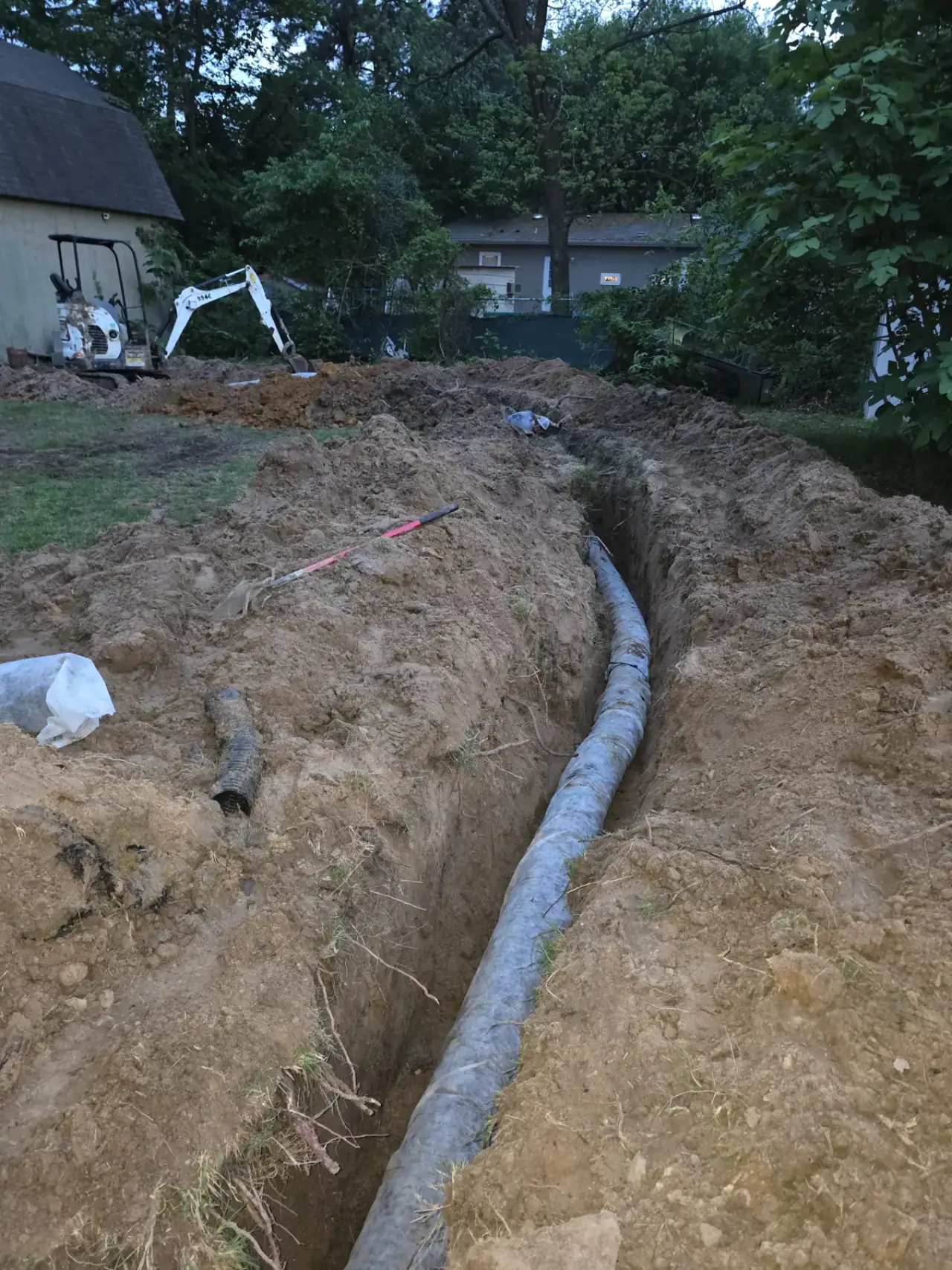

Trenching to the House

Machine for the long open stretch of yard, then the line set and checked by hand.

Outside the Wall

Drain routed along the outside wall and down into the yard, strapped where it runs above ground.

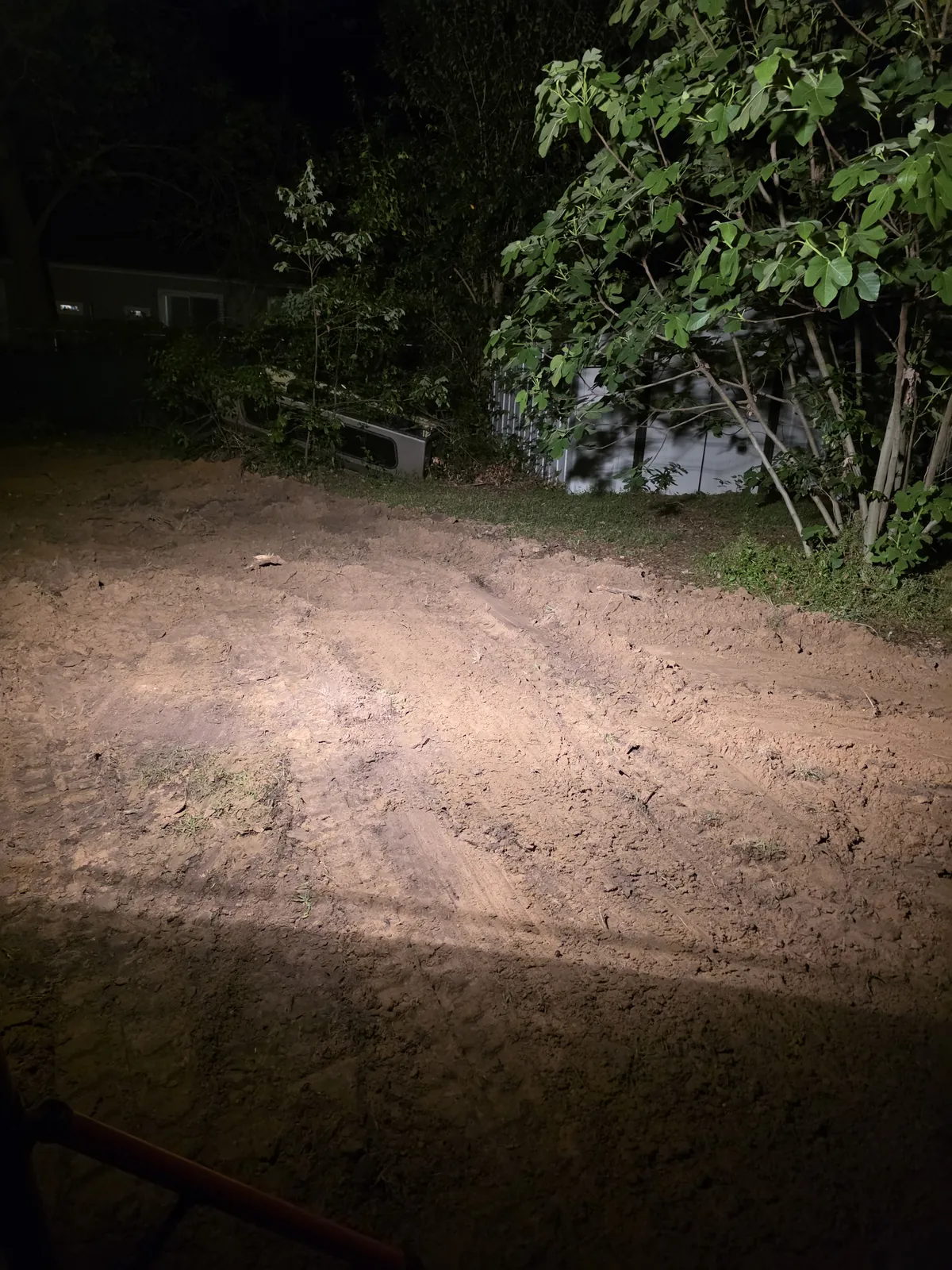

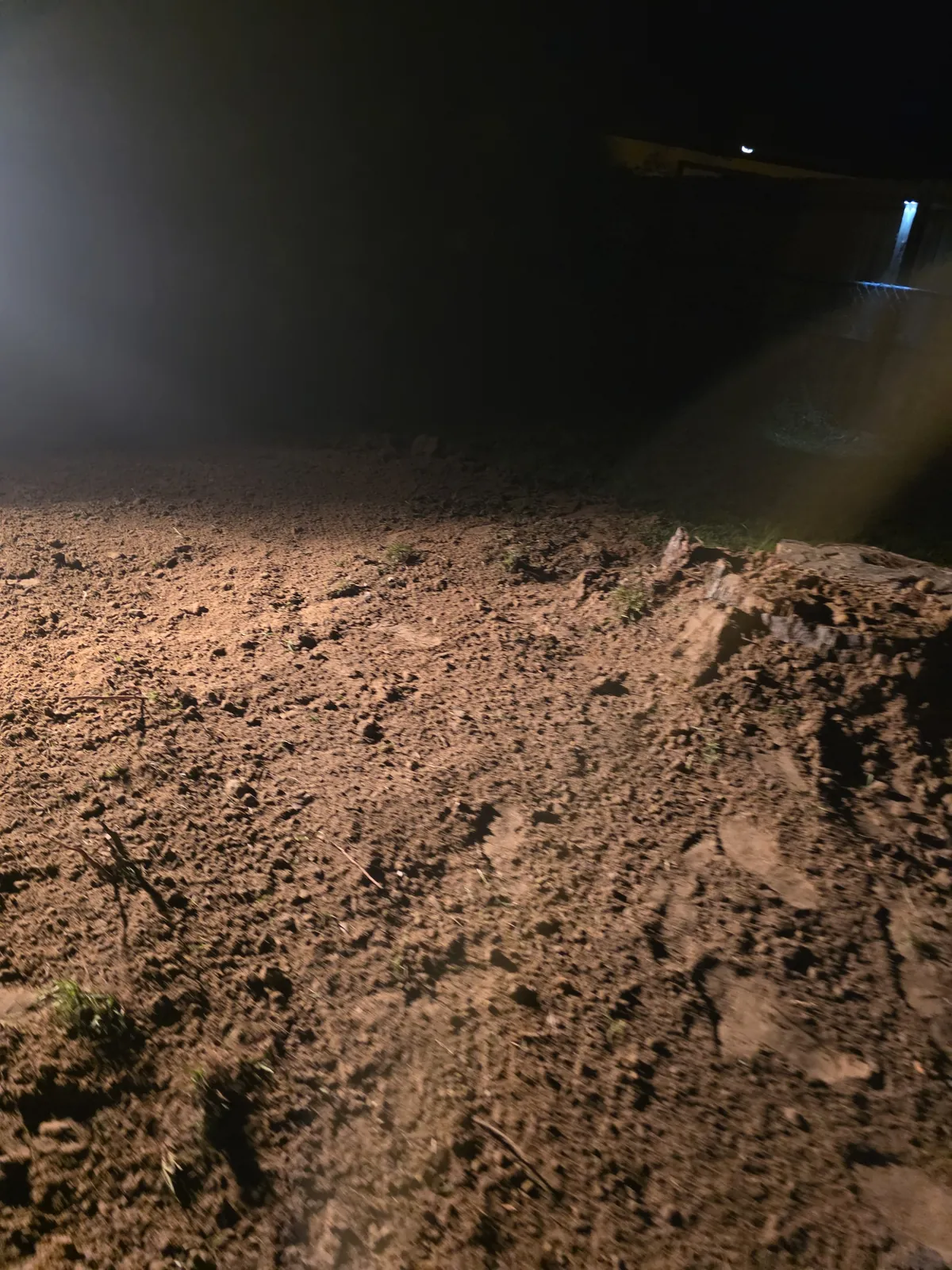

Backfilled After Dark

Some jobs run past sunset. The trench still gets closed before the crew leaves.

Graded Back Down

Packed and graded so the yard does not settle into a ditch after the first hard rain.

Left Level

Raked out level. Grass comes back on its own; a sunken trench line does not.

Behind the walls and on the counters

Bath, kitchen, and the pipe behind the walls. The finish work everyone sees, and the rough-in that decides whether it still works in fifteen years.

Kitchen Faucet Set

Bridge faucet mounted and plumbed on a stone top. Drilling stone is a one-shot operation; measure accordingly.

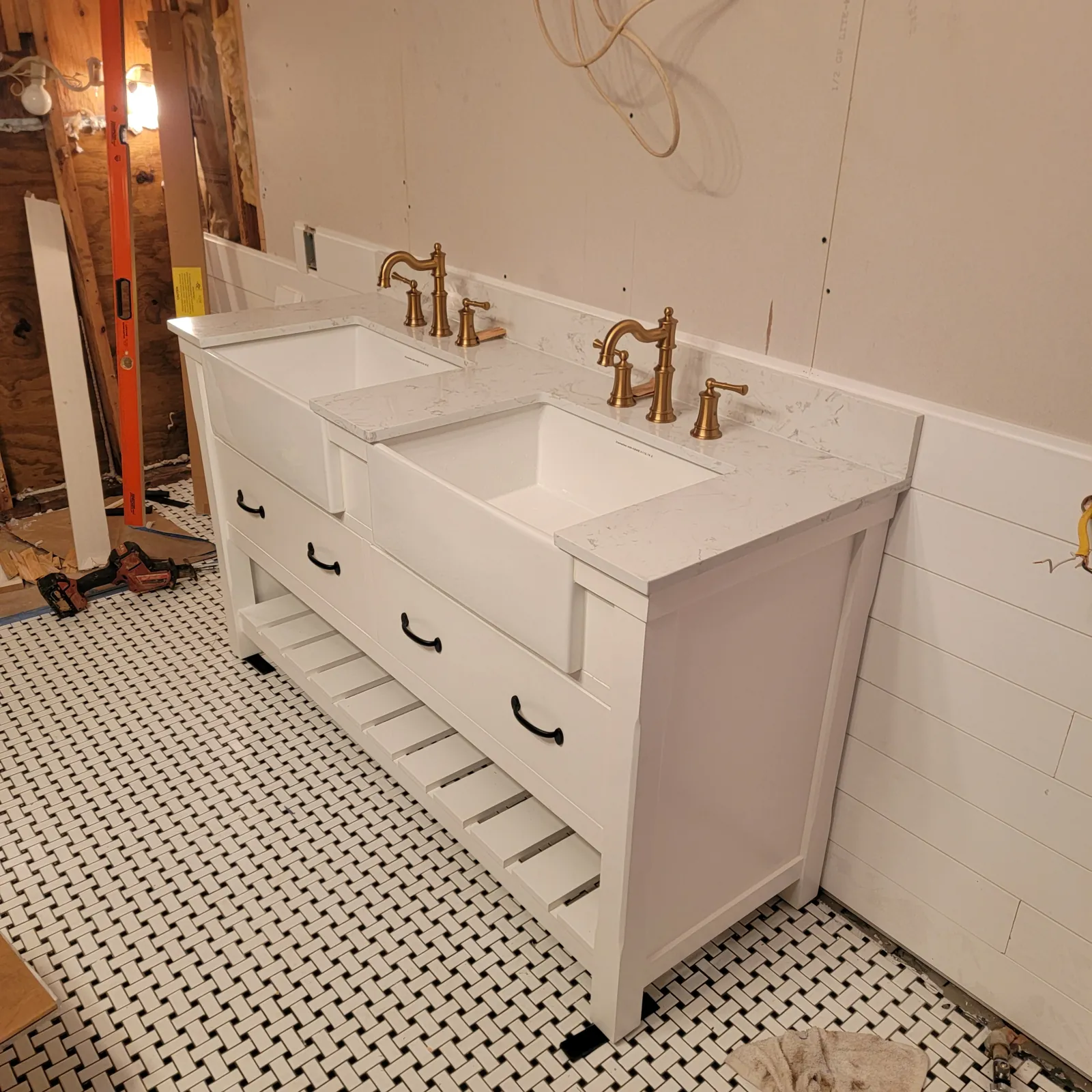

Vanity Rough and Set

Twin farmhouse basins set with wall-mount brass. All eight connections behind that cabinet are ours too.

Vanity Faucet

New faucet set, supply lines snugged, and the cabinet checked for drips before anybody called it done.

One Faucet, Done Right

Not every call is a remodel. Sometimes it is one faucet.

Double Sink Drain

Both bowls tied into one trap, with slip joints you can loosen by hand when something drops down the drain.

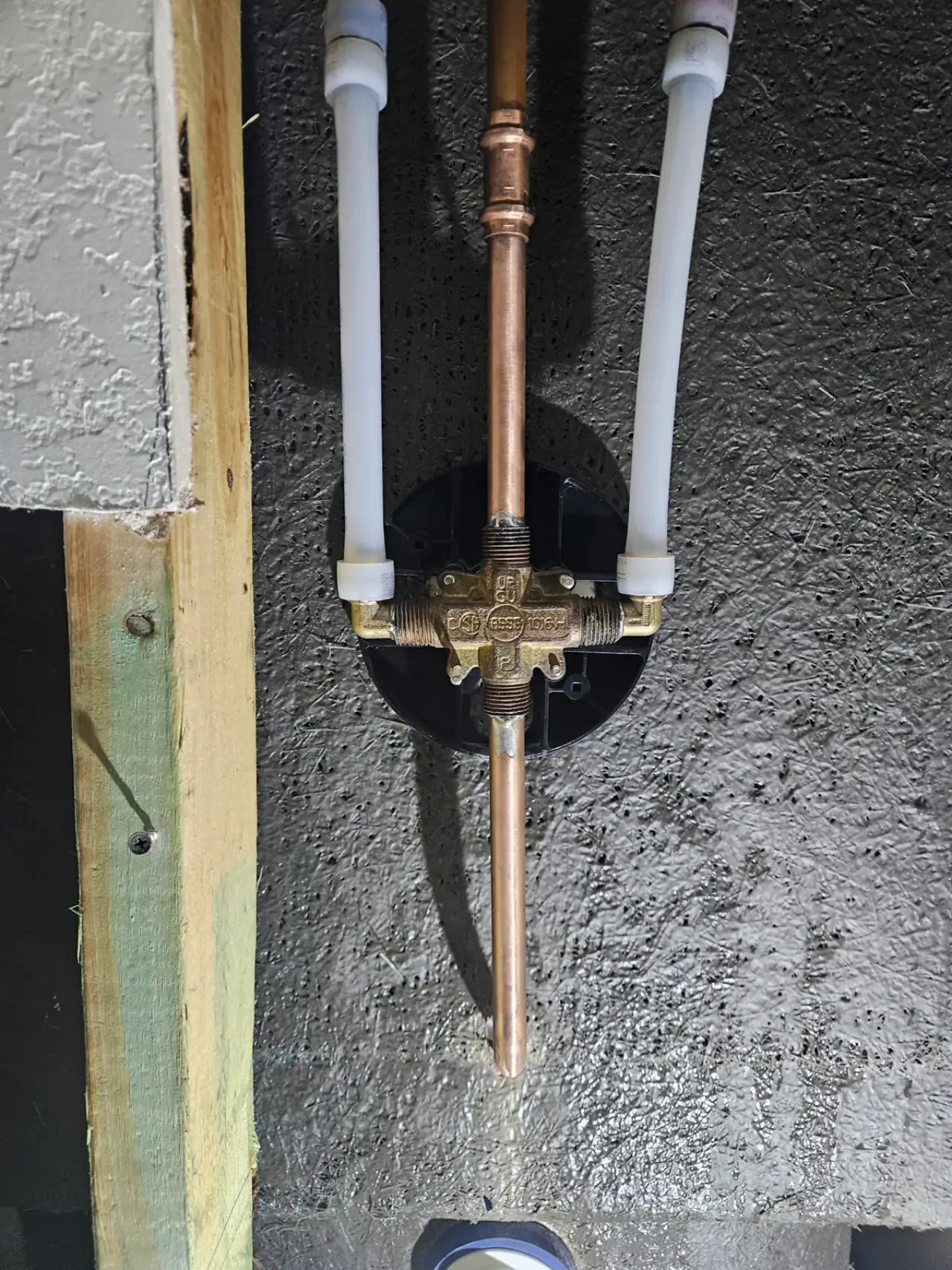

Shower Valve Rough-In

New valve body set at depth on PEX. Set plumb and at the right depth or the trim never sits right, simple as that.

The Finished Wall

Same job, wall closed. What the customer sees is the trim; what they paid for is the valve behind it being right.

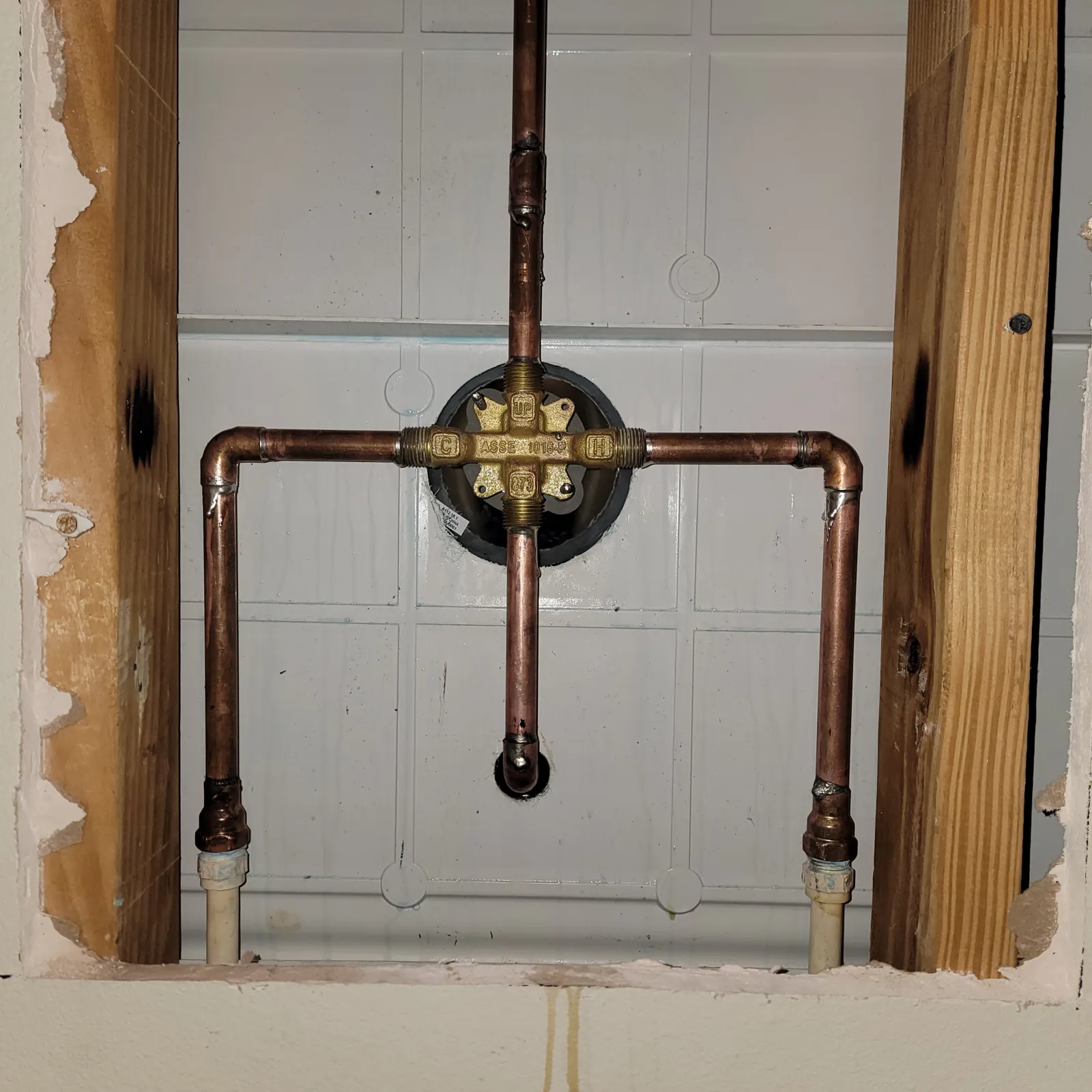

Copper Shower Rough

Valve centered between the studs, risers straight, and the wall left open until it tests tight.

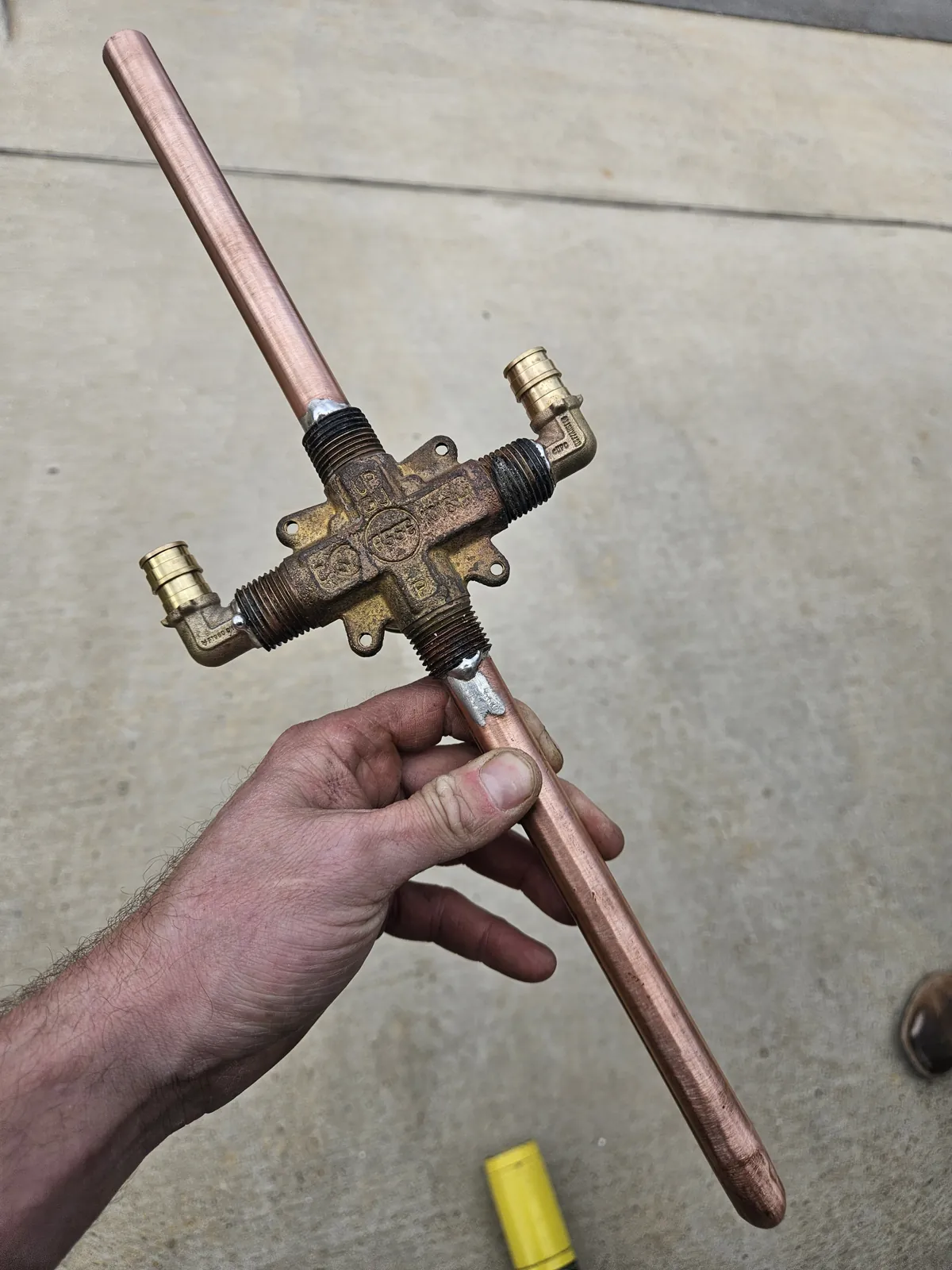

New Valve Body

The new valve before it goes in the wall, fittings laid out and checked on the driveway first.

Built Up Before It Goes In

Valve and riser put together outside the wall, so the only joints made in the wall are the ones that have to be.

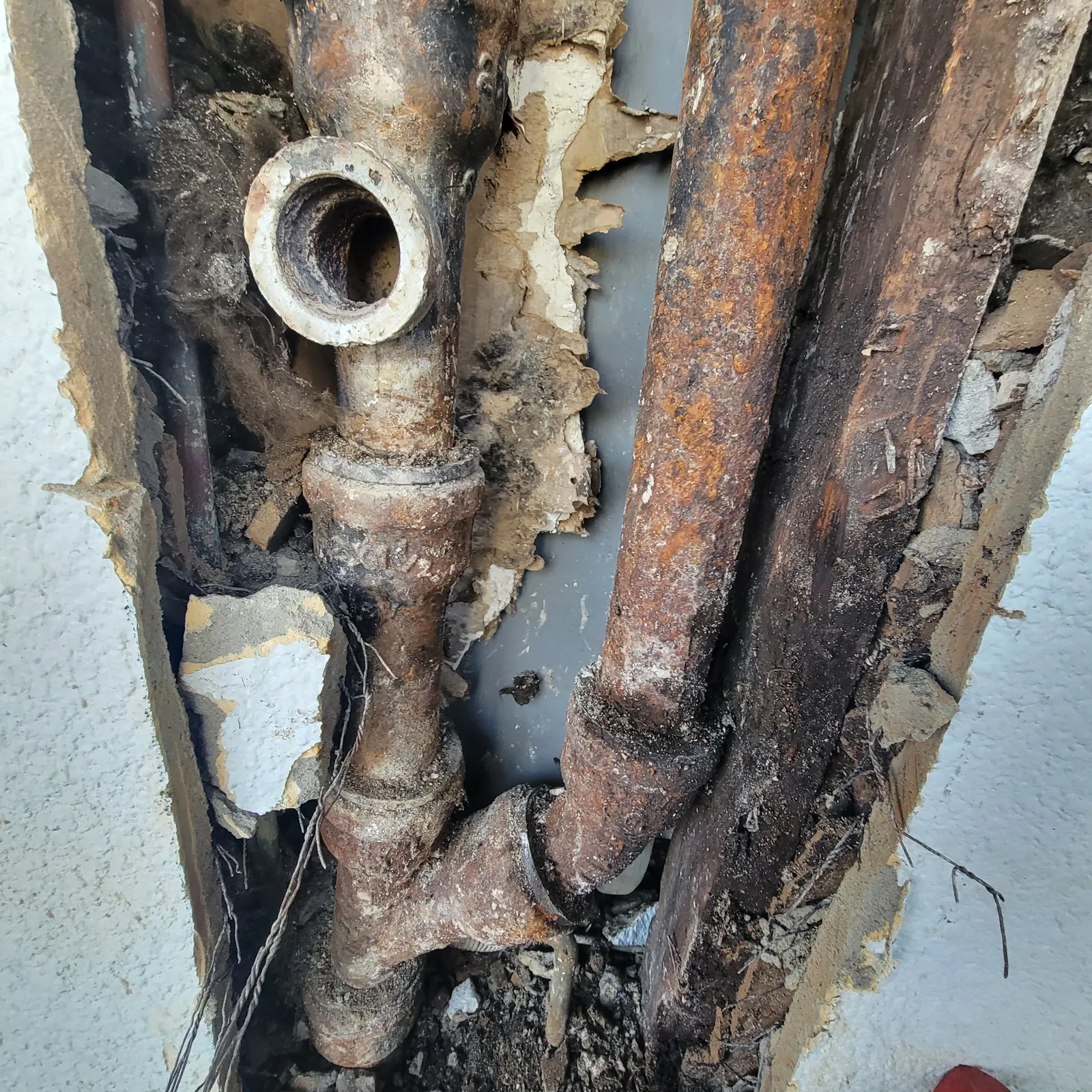

Why Homes Repipe

Sixty-year-old galvanized opened up mid-failure. When the inside of the pipe looks like this, spot repairs are a subscription service.

The Repipe After

Same wall, new drains. Correct fall, proper support, and a system the next plumber will not curse us for.

New Drain in the Wall

Wall opened only as wide as the fitting needed. Less to patch, less for the customer to repaint.

Laundry Drain Repair

Washer box above, drain behind the drywall below. Opened, fixed, and ready to close up.

Opened Below the Box

Cut below the box to reach the line instead of tearing out the box itself.

New Supply to the Box

New copper up to the valve. The wall stays open until it has held pressure.

Closed Up

Box set square in the patched wall, valve centered in its opening.

Cast Iron Retired

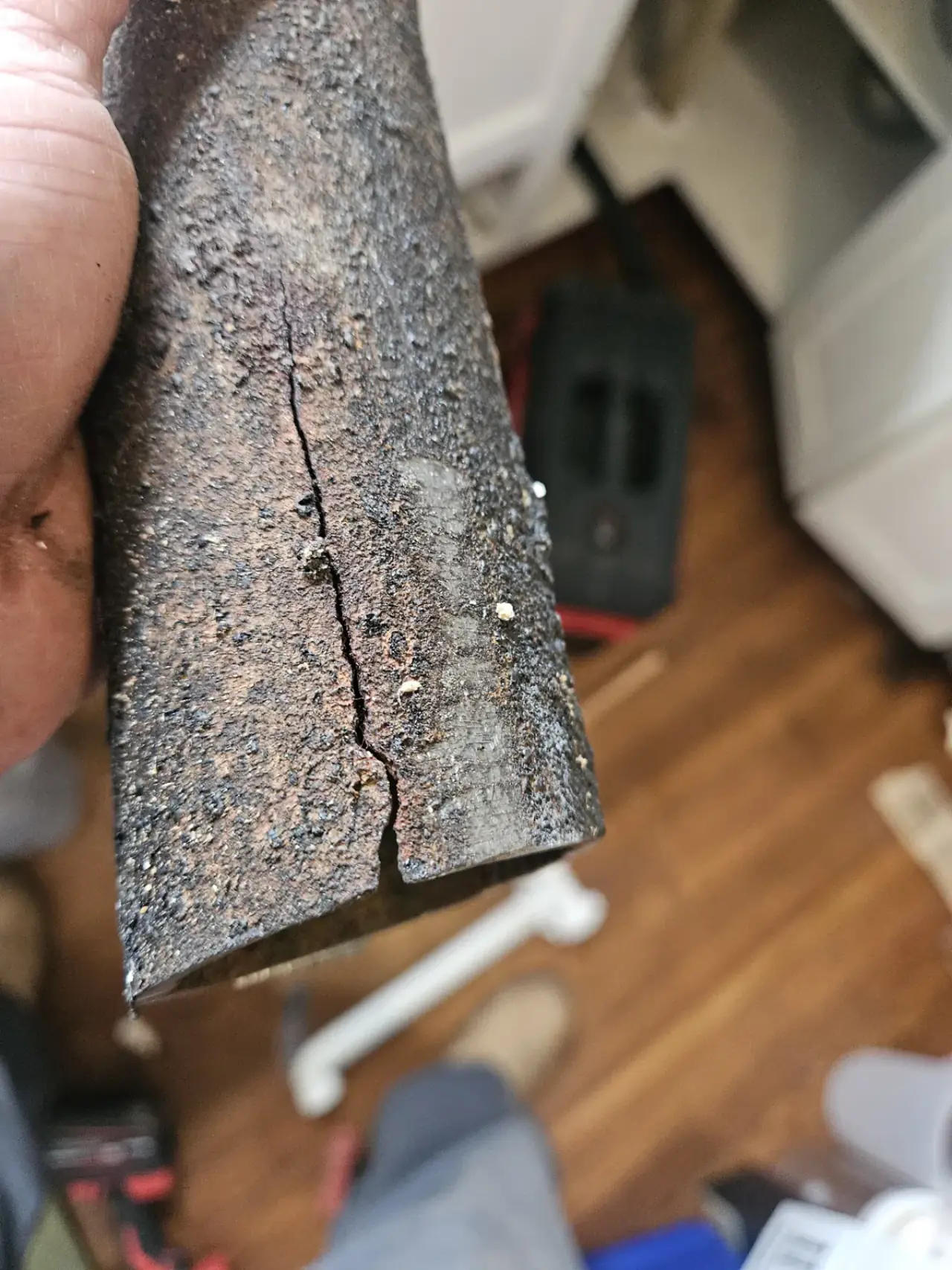

A section of the cast iron we pulled out, split along its length. It did seventy years of service; it was done.

One barn wash station, start to finish

A working barn got a sink with a real drain. Here is the whole job, from the old cabinet to the stainless station.

Before

What was there: an old cabinet and water on the floor.

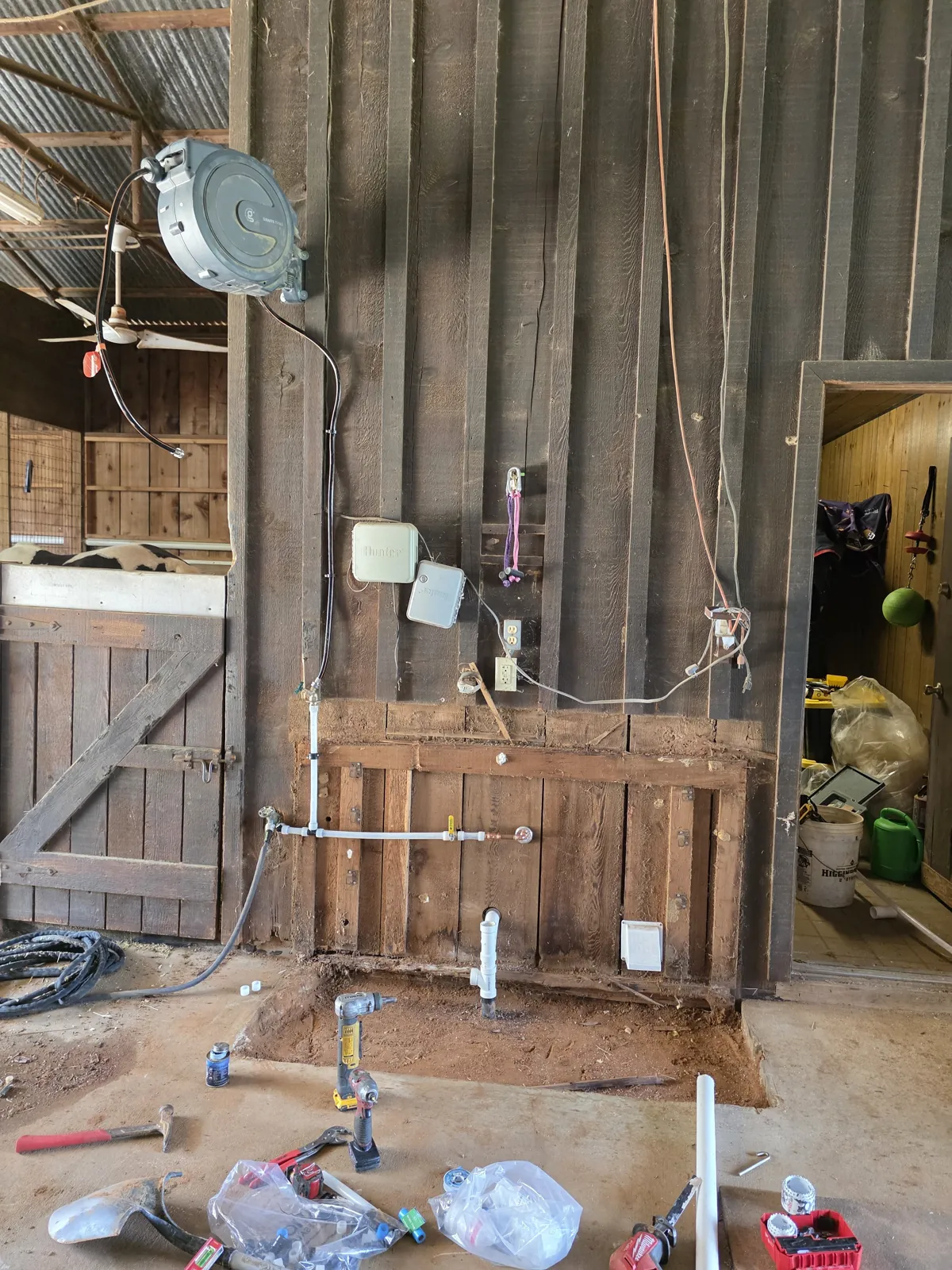

Rough-In

Cabinet out, slab cut, supply and drain brought to the wall.

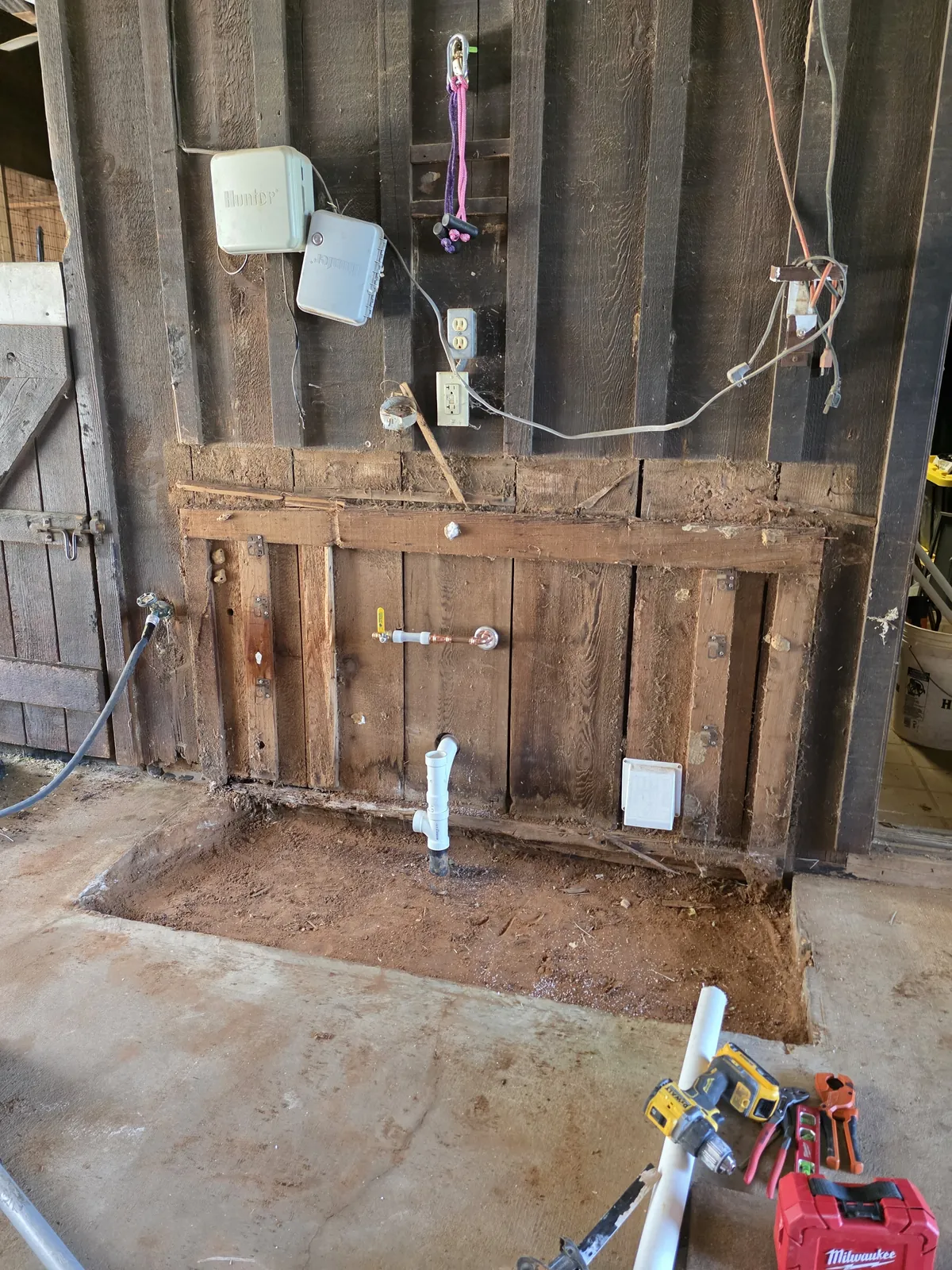

Stubbed Out

Supplies and drain brought out at the height the new station needs.

Under the Floor

Drain run beneath the barn floor to the stub.

Ready to Pour

Rebar set across the cut so the patch ties into the old slab.

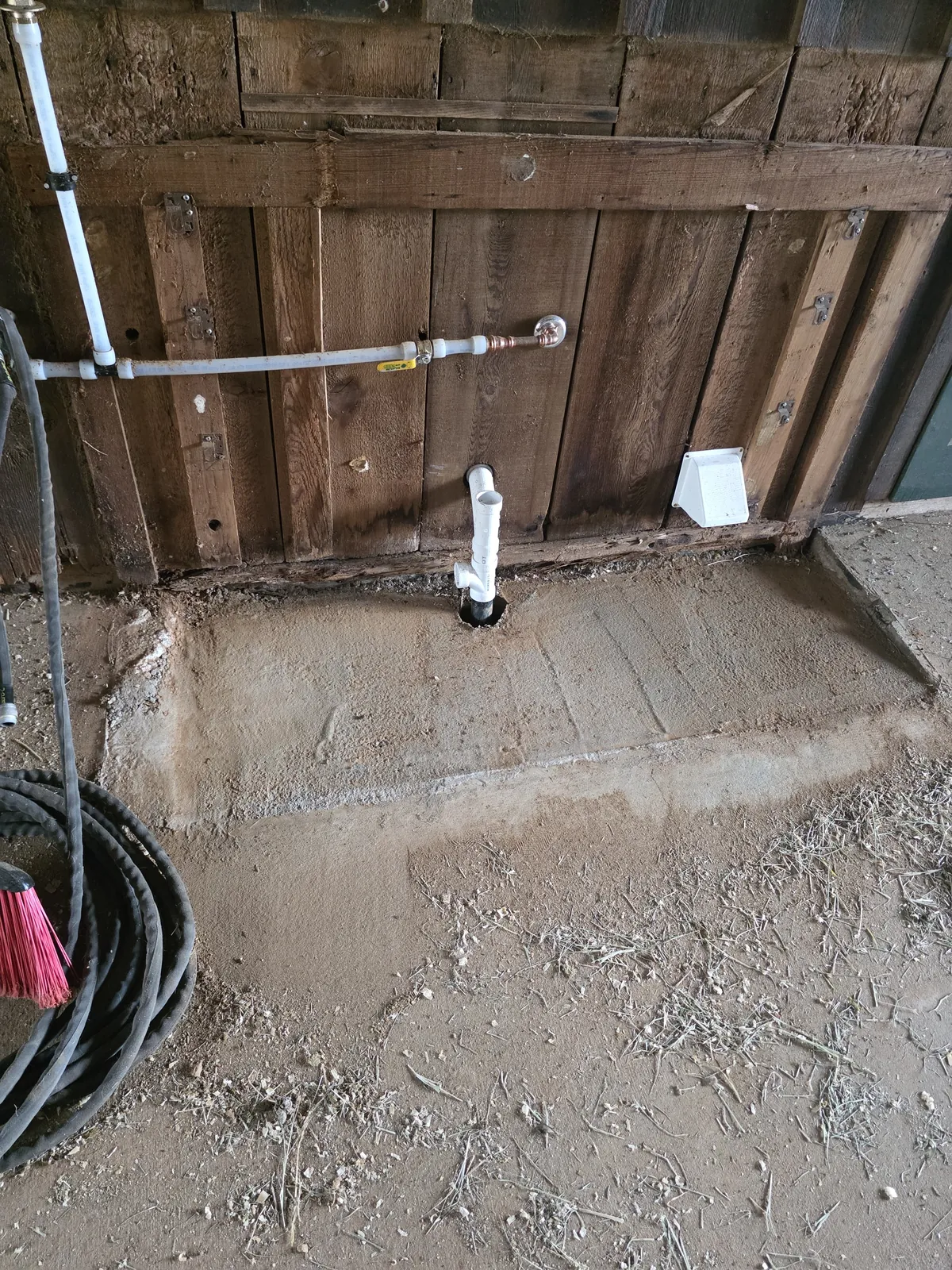

Poured Back

Slab poured back with the drain stub coming straight up through it.

Set

Station in place, supplies tied in, drain connected.

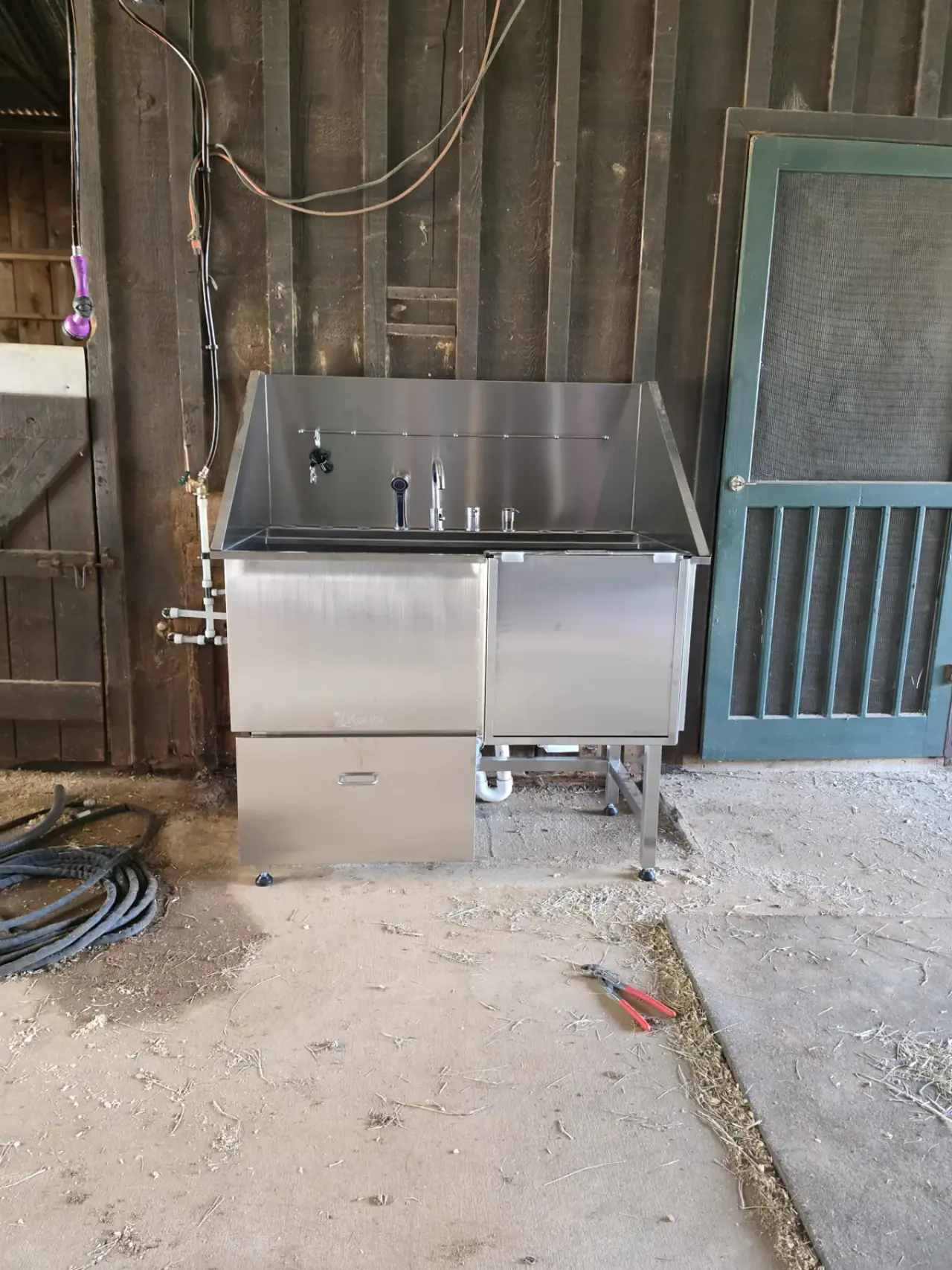

Barn Wash Station

Stainless wash station set and plumbed in a working barn, supply lines run through unconditioned space and protected from freezing.

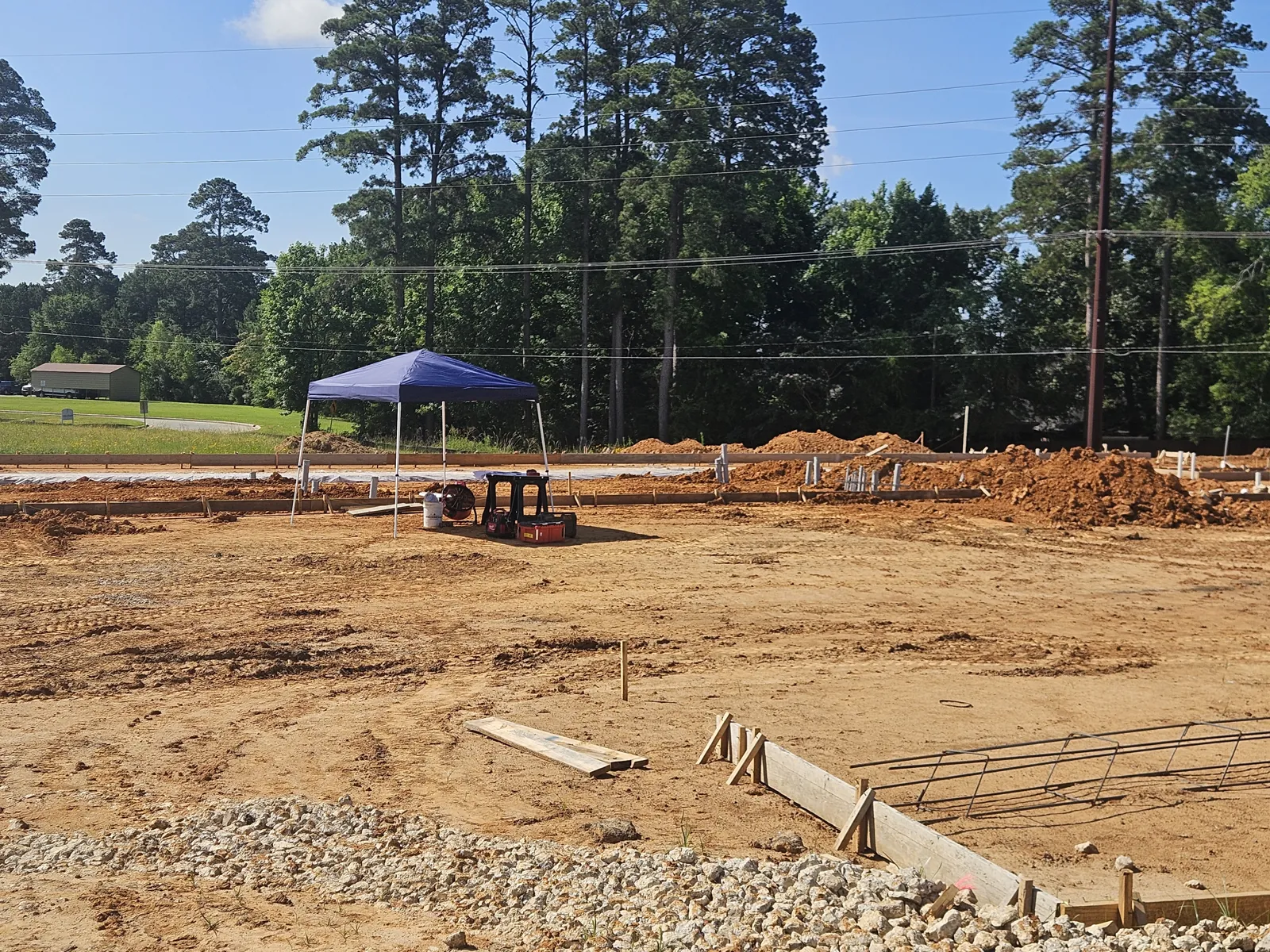

One commercial rough-in, start to finish

A single commercial job documented from the first saw cut to the overhead mains. Under-slab work is the part nobody sees once the concrete goes down, which is exactly why we photograph it.

Saw-Cut Slab Run

A clean saw cut straight down the run instead of breaking concrete out by the yard. Slower going in, far less to patch and far less dust through the rest of the building.

Straight Down the Cut

Looking down the trench. Just wide enough to work in and no wider.

Storefront Under-Slab Work

Slab work inside a commercial shell before the space gets finished out. Doing it now is a saw cut; doing it after the floor goes down is a very different conversation.

Under-Slab Drain Assembly

The whole branch built up in the open before anything gets buried. Every riser is capped because the system gets tested full of water, and a test is the only honest way to find a joint that is not right.

Fixture Layout Set

Risers standing where the fixtures will land, set off the dimensions rather than eyeballed. Concrete goes over this next, so the layout gets checked twice against the plan before anybody calls for the pour.

Fittings Laid Out

Wyes set out on the dirt before they go in, so the layout is settled before any cement comes out.

Rough-In Under a Wall

Stubs brought up tight to the framing. Long sweeps instead of hard turns wherever there is room, because a cable has to get around those bends years from now.

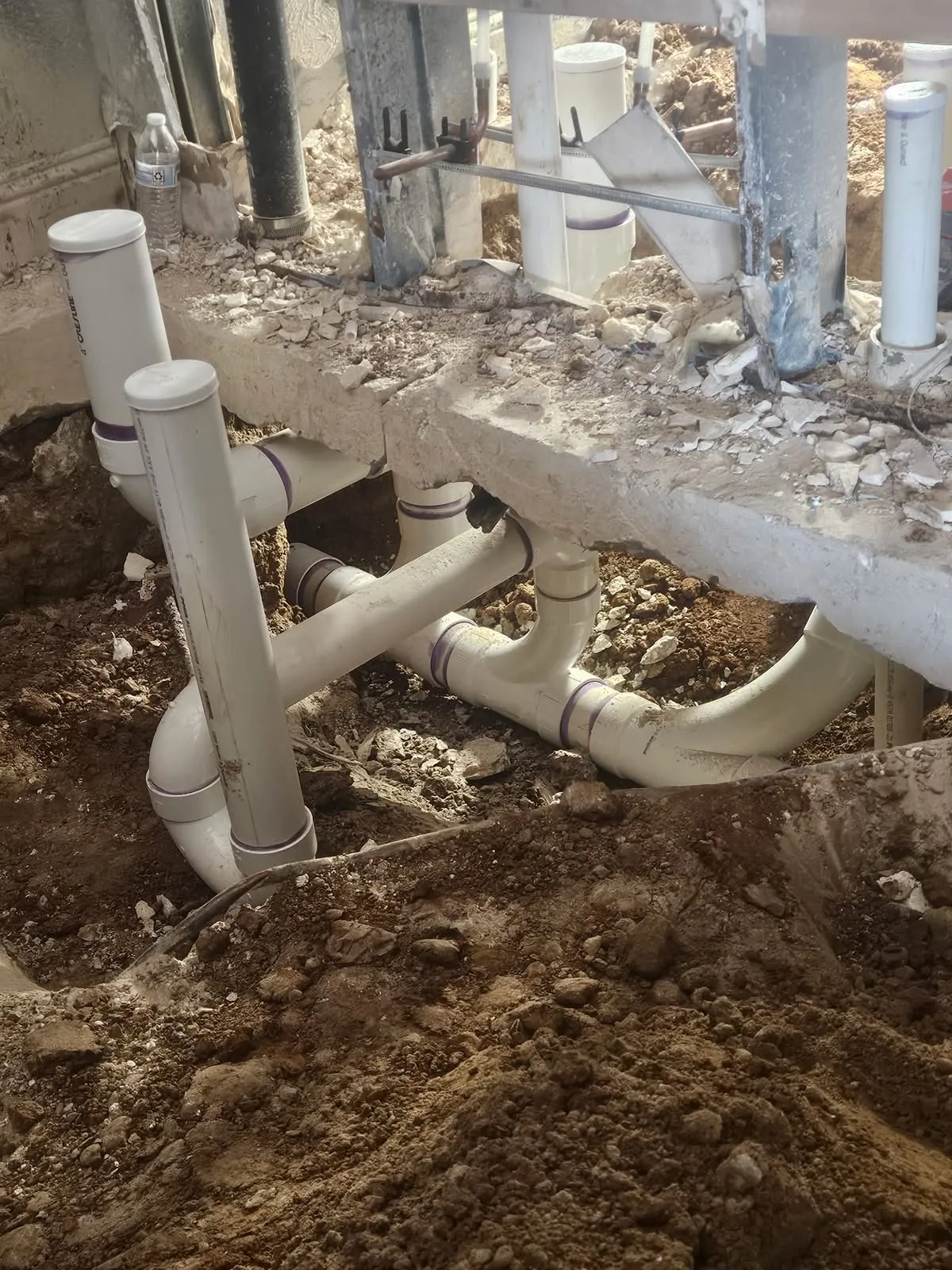

Sweeps Under the Slab

Long-radius elbows instead of hard turns where the line passes under the slab edge. That fitting choice decides whether the next blockage is a half-hour cable job or a jackhammer.

Cut, Tie In, Close

Slab opened just wide enough to work, stubs run up through it and capped. The narrower the opening, the less patch there is to fail later.

Flat on the Dirt

Some joints only get made lying on your stomach. This was one of them.

Tying Into the Main

New stubs married to the three-inch line at the bottom of the trench. Primer and cement sitting on the slab edge: the purple is how an inspector confirms the joint was prepped and not just glued.

Overhead in the Shell

Mains run overhead through the shell while the deck is still open and every hanger is reachable. Sequencing with the other trades here is most of the job.

Why the boring photos matter

Most plumbing photos on contractor websites are stock images of a smiling person holding a wrench. Ours are close-ups of joints, valve bodies, and stub-outs, because that is where you can actually tell whether somebody did the job right.

Clean solder joints. Valves set plumb and at the correct depth. Lines run with proper support instead of strapped wherever was convenient. Work areas cleaned up. These are the details that decide whether a repair holds for fifteen years or fails the week after the warranty runs out.

If you are comparing plumbers, ask each one to show you a photo of a joint they made. The ones who hesitate are telling you something. Ready to get started? Send us a note or look through everything we handle.
